Impedance Matching: Practical Design Examples at 1 GHz
This notebook demonstrates practical impedance matching techniques using:
Transmission line transformations
Series reactive elements (inductors/capacitors)
Shunt reactive elements (inductors/capacitors)
All examples use f = 1 GHz and Z₀ = 50Ω transmission lines.
Technique |
Elements |
Advantages |
Disadvantages |
Best For |
|---|---|---|---|---|
Quarter-Wave |
1 TL (λ/4) |
Simple, no lumped elements |
Only for resistive loads, narrowband |
Resistive impedance transformation |
Series Stub |
1 TL + 1 Series |
Simple, 2 elements |
Requires specific TL length |
General matching, easy to implement |
Shunt Stub |
1 TL + 1 Shunt |
Common in microstrip |
Requires specific TL length |
Microstrip circuits |
L-Network |
2 Lumped |
No TL needed, broadband |
Limited Q range |
Low frequency, broadband |
Double-Stub |
2 Shunt + 1 TL |
Tunable stubs |
More complex |
Tunable matching systems |
Key Formulas
The impedance is
\[Z = R + j X\]
where R is the resistance and X is the reactance.
Reactance to Inductance: If X is positive then the equivalent inductance is
\[L = \frac{X}{\omega} = \frac{X}{2\pi f}\]
Reactance to Capacitance: If X is negative, then the equivalent capacitance is
\[C = \frac{1}{\omega |X|} = \frac{1}{2\pi f |X|}\]
Wavelength: If \(u_p\) is the phase velocity of in the medium, then the electrical wavelength is
\[\lambda = \frac{u_p}{f} = \frac{3 \times 10^8 \text{ m/s}}{f}\]
Typical values for \(u_p\) are \(0.66c \approx 2 \times 10^8\) m/s.
VSWR:
\[\text{VSWR} = \frac{1 + |\Gamma|}{1 - |\Gamma|}\]
where \(\Gamma = \frac{Z_L - Z_0}{Z_L + Z_0}\)
[1]:
%config InlineBackend.figure_format = 'retina'
import sys
import numpy as np
import matplotlib.pyplot as plt
if sys.platform == "emscripten":
import piplite
await piplite.install("pysmithchart")
from pysmithchart.constants import Z_DOMAIN, NORM_Y_DOMAIN
from pysmithchart import utils
from pysmithchart.rotation import *
from pysmithchart.utils import cs
# Constants
f = 1e9 # 1 GHz
omega = 2 * np.pi * f
Z0 = 50 # Characteristic impedance
text_box = {"facecolor": "lightyellow", "edgecolor": None}
Quarter-Wave Transformer to match resistive load
A λ/4 transmission line transforms the load impedance \(Z_L\) so that the input impedance of the combination of the λ/4 transformer and load becomes
\[Z_{in} = \frac{Z_{tr}^2}{Z_L}\]
where \(Z_{tr}\) is the characteristic impedance of the λ/4 transformer.
Matching a 100Ω to a resistive 50Ω load.
[2]:
Z0 = 50 # impedance of feedline
Z_load = 200 + 0j # purely resistive load
Z_qw = np.sqrt(Z0 * Z_load) # impedance of λ/4 TL needed to match Z0
wavelength = 0.25 # λ/4
# Physical length
c = 3e8 # Speed of light m/s
u_p = 0.66 * c # phase velocity of wave m/s
lambda_m = u_p / f # wavelength m
length_mm = wavelength * lambda_m * 1000 # λ/4 TL length in mm
z_load = Z_load / Z_qw
z_transformed = rotate_z_by_wavelength(z_load, wavelength)
Z_transformed = z_transformed * Z_qw
print("=" * 60)
print("QUARTER-WAVE TRANSFORMER")
print("=" * 60)
print(f"Frequency: {f/1e9:.1f} GHz")
print(f"Load impedance: %s Ω" % cs(Z_load, 0))
print()
print("λ/4 transformer line")
print(" Characteristic Impedance %s Ω" % cs(Z_qw))
print(f" Physical length: {length_mm:.1f} mm")
print()
print("After λ/4 line")
print(f" Input impedance: %s Ω" % cs(Z_transformed))
print(f" Expected Z₀²/Z_load: %s Ω" % cs(Z_qw**2 / Z_load))
print()
============================================================
QUARTER-WAVE TRANSFORMER
============================================================
Frequency: 1.0 GHz
Load impedance: 200 Ω
λ/4 transformer line
Characteristic Impedance 100 Ω
Physical length: 49.5 mm
After λ/4 line
Input impedance: 50 Ω
Expected Z₀²/Z_load: 50 Ω

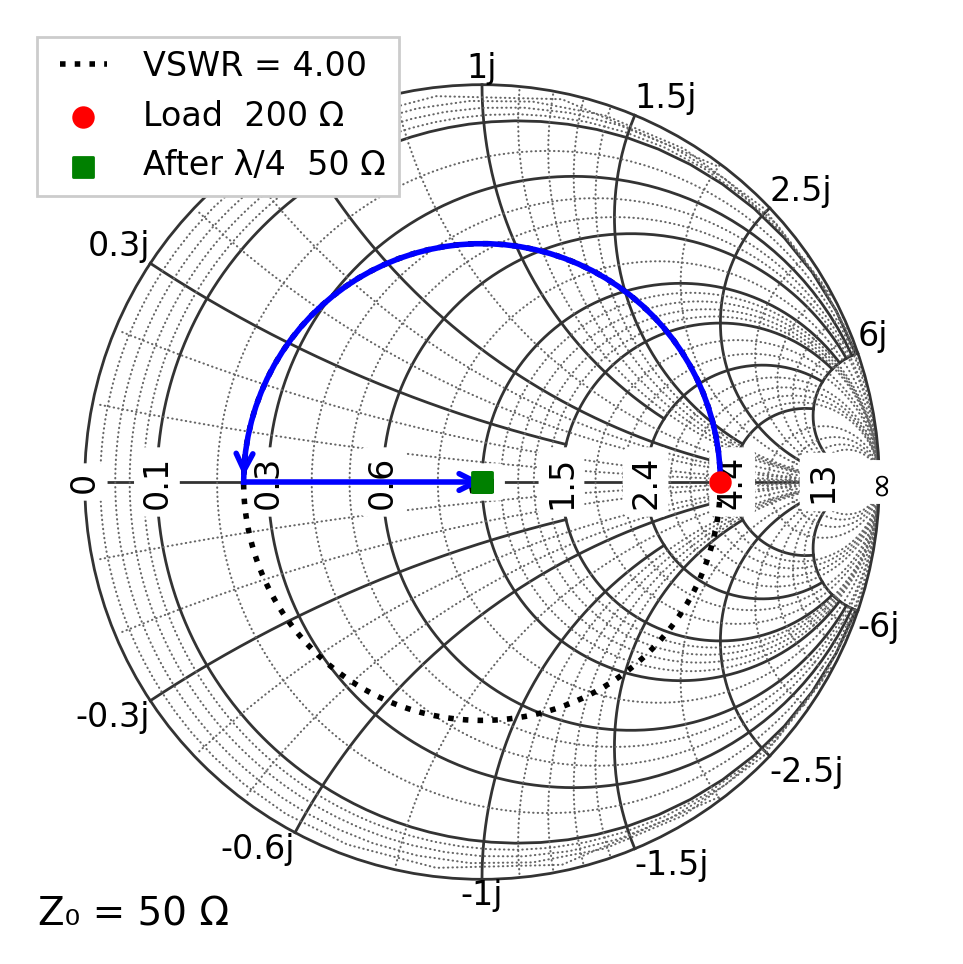

[3]:
plt.figure(figsize=(6, 6))
ax = plt.subplot(111, projection="smith")
vswr = utils.calc_vswr(Z0, Z_load)
ax.plot_vswr(vswr, "k:", label=f"VSWR = {vswr:.2f}")
# Plot rotation path
ax.plot_rotation_path(Z_load, Z_transformed, "b", linewidth=2, arrow="end")
# Mark points
ax.scatter(Z_load, c="red", s=50, marker="o", label=f"Load %s Ω" % cs(Z_load))
ax.scatter(Z_transformed, c="green", s=50, marker="s", label=f"After λ/4 %s Ω" % cs(Z_transformed))
ax.legend(loc="upper left", framealpha=1)
plt.show()
Example 2: Single-Stub Matching (Series)
Match a complex load using:
Transmission line to rotate to 50Ω
Series reactive element to cancel remaining reactance
Application: Simple two-element matching network.
[4]:
Z0 = 50
Z_load = 75 + 100j # Complex load
z_load = Z_load / Z0
print("=" * 60)
print("EXAMPLE 2: SERIES STUB MATCHING")
print("=" * 60)
print(f"Frequency: {f/1e9:.1f} GHz")
print(f"Load impedance: %s Ω" % cs(Z_load))
print()
# Step 1: Rotate to real axis
z_after_tl = rotate_z_toward_resistance(z_load, 1, solution="closer")
Z_after_tl = z_after_tl * Z0
# Calculate TL length
gamma_load = (z_load - 1) / (z_load + 1)
gamma_tl = (z_after_tl - 1) / (z_after_tl + 1)
angle_diff = np.angle(gamma_tl) - np.angle(gamma_load)
wavelength_tl = (angle_diff / (4 * np.pi)) % 1
length_tl_mm = wavelength_tl * lambda_m * 1000
print(f"Step 1 - After transmission line")
print(f" z = %s Ω" % cs(Z_after_tl, 0))
print(f" TL length: {wavelength_tl:.2f}λ ({length_tl_mm:.1f} mm)")
print()
# Step 2: Series reactance to cancel and match to 50Ω
X_series = -Z_after_tl.imag # Cancel reactance
R_parallel_needed = Z_after_tl.real - Z0 # Additional resistance transformation needed
comp_type, comp_value, comp_unit = utils.reactance_to_component(X_series, f)
print(f"Step 2 - Series element:")
print(f" Reactance needed: {X_series:+.2f} Ω")
print(f" Component: {comp_type} = {comp_value:.2f} {comp_unit}")
print()
# Final impedance
Z_final = Z_after_tl.real + 1j * (Z_after_tl.imag + X_series)
z_final = Z_final / Z0
print(f"Final impedance: {Z_final:.2f} Ω")
============================================================
EXAMPLE 2: SERIES STUB MATCHING
============================================================
Frequency: 1.0 GHz
Load impedance: 75 + 100j Ω
Step 1 - After transmission line
z = 50 + 84j Ω
TL length: 0.02λ (3.5 mm)
Step 2 - Series element:
Reactance needed: -84.16 Ω
Component: Capacitor = 1.89 pF
Final impedance: 50.00+0.00j Ω

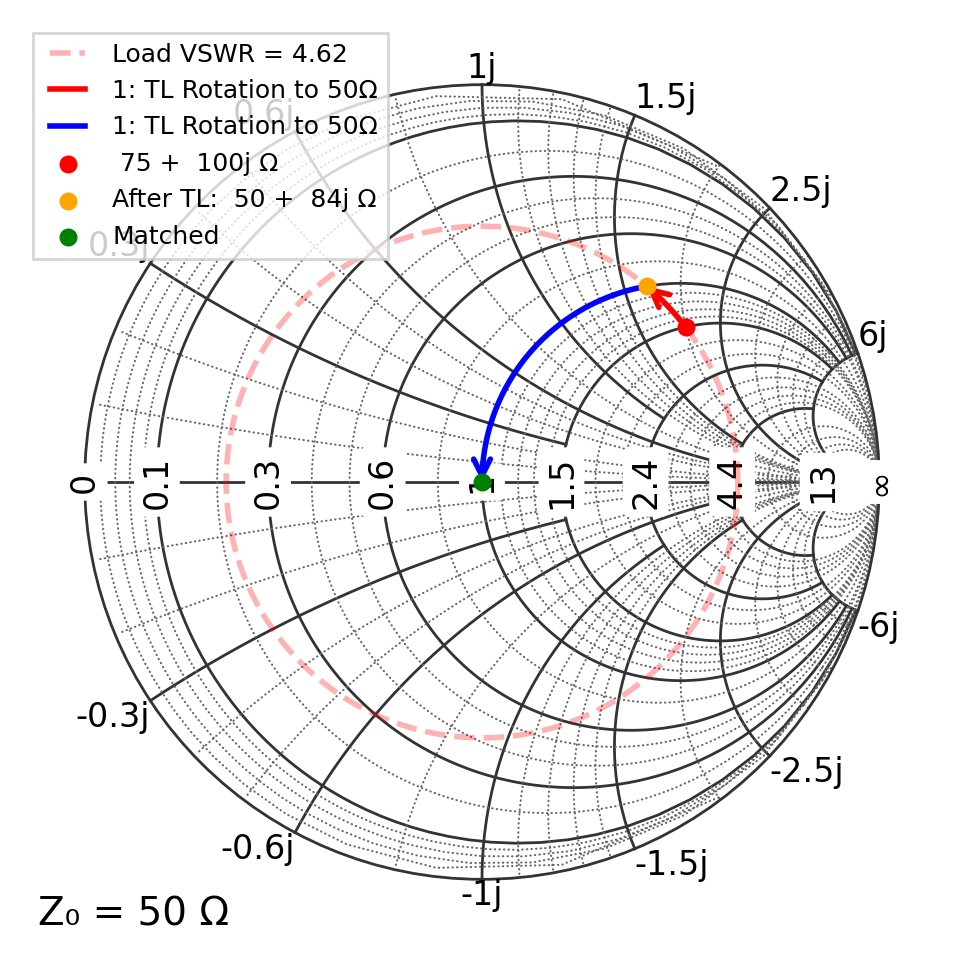

[5]:
vswr = utils.calc_vswr(Z0, Z_load)
plt.figure(figsize=(6, 6))
ax = plt.subplot(111, projection="smith")
ax.plot_vswr(vswr, "r--", alpha=0.3, label=f"Load VSWR = {vswr:.2f}")
ax.plot_rotation_path(Z_load, Z_after_tl, "r-", lw=2, arrow="end", label="1: TL Rotation to 50Ω")
Z_plot = np.array([Z_after_tl, Z_final])
ax.plot_constant_resistance(
1, "b-", range=(z_after_tl.imag, z_final.imag), lw=2, arrow="end", label="1: TL Rotation to 50Ω"
)
ax.scatter(Z_load, c="red", s=30, label=f"%s Ω" % cs(Z_load))
ax.scatter(Z_after_tl, c="orange", s=30, label=f"After TL: %s Ω" % cs(Z_after_tl, 0))
ax.scatter(Z_final, c="green", s=30, label=f"Matched")
ax.legend(loc="upper left", fontsize=9)
plt.show()
[6]:
vswr = utils.calc_vswr(Z0, Z_load)
plt.figure(figsize=(6, 6))
ax = plt.subplot(111, projection="smith")
ax.plot_vswr(vswr, "r--", alpha=0.3, label=f"Load VSWR = {vswr:.2f}")
ax.plot_rotation_path(Z_load, Z_after_tl, "r-", lw=2, arrow="end", label="1: TL Rotation to 50Ω")
Z_plot = np.array([Z_after_tl, Z_final])
ax.plot_constant_resistance(
1, "b-", range=(z_after_tl.imag, z_final.imag), lw=2, arrow="end", label="1: TL Rotation to 50Ω"
)
ax.scatter(Z_load, c="red", s=30, label=f"%s Ω" % cs(Z_load))
ax.scatter(Z_after_tl, c="orange", s=30, label=f"After TL: %s Ω" % cs(Z_after_tl, 0))
ax.scatter(Z_final, c="green", s=30, label=f"Matched")
ax.legend(loc="upper left", fontsize=9)
plt.show()
Example 3: Single-Stub Matching (Shunt)
Match using:
Transmission line to rotate to conductance = 1/Z₀
Shunt reactive element to cancel susceptance
Application: Common in microstrip circuits where shunt stubs are easier to implement.
[7]:
Z0 = 50
Y0 = 1 / Z0
y_load = 0.5 + 0.6j
Y_load = y_load * Y0
Z_load = 1 / Y_load
print("=" * 60)
print("EXAMPLE 3: SHUNT STUB MATCHING")
print("=" * 60)
print(f"Frequency: {f/1e9:.1f} GHz")
print(f"Load admittance: {Y_load*1000:.3f} mS")
print(f"Norm admittance: {y_load:.3f}")
print(f"Load impedance: {Z_load:.1f} Ω")
print()
# Step 1: Rotate to G = Y0 (g=1)
# Convert to impedance for the rotation function
y_after_tl = rotate_y_toward_conductance(y_load, 1, solution="closer")
Y_after_tl = y_after_tl * Y0
Z_after_tl = 1 / Y_after_tl
print(f"Step 1 - After transmission line:")
print(f" Target conductance: {Y0*1000:.3f} mS")
print(f" Admittance: {Y_after_tl*1000:.3f} mS")
print(f" Norm Admittance: {y_after_tl:.2f}")
# Calculate TL length
gamma_load = (Z_load / Z0 - 1) / (Z_load / Z0 + 1)
gamma_tl = (Z_after_tl / Z0 - 1) / (Z_after_tl / Z0 + 1)
angle_diff = np.angle(gamma_tl) - np.angle(gamma_load)
wavelength_tl = (angle_diff / (4 * np.pi)) % 1
length_tl_mm = wavelength_tl * lambda_m * 1000
print(f" TL length: {wavelength_tl:.4f}λ ({length_tl_mm:.2f} mm)")
print()
# Step 2: Shunt susceptance to cancel
B_shunt = -Y_after_tl.imag # Susceptance to cancel
X_shunt = -1 / B_shunt if B_shunt != 0 else 0 # Reactance of shunt element
comp_type, comp_value, comp_unit = utils.reactance_to_component(X_shunt, f)
print(f"Step 2 - Shunt element:")
print(f" Susceptance needed: {B_shunt*1000:+.3f} mS")
print(f" Equivalent reactance: {X_shunt:+.2f} Ω")
print(f" Component: {comp_type} = {comp_value:.2f} {comp_unit}")
print()
# Final admittance
Y_final = Y_after_tl + 1j * B_shunt
y_final = Y_final / Y0
Z_final = 1 / Y_final
print(f"Final normalized y: {y_final:.2f}")
print(f"Final impedance: {Z_final:.2f} Ω")
============================================================
EXAMPLE 3: SHUNT STUB MATCHING
============================================================
Frequency: 1.0 GHz
Load admittance: 10.000+12.000j mS
Norm admittance: 0.500+0.600j
Load impedance: 41.0-49.2j Ω
Step 1 - After transmission line:
Target conductance: 20.000 mS
Admittance: 20.000+22.091j mS
Norm Admittance: 1.00+1.10j
TL length: 0.9348λ (185.10 mm)
Step 2 - Shunt element:
Susceptance needed: -22.091 mS
Equivalent reactance: +45.27 Ω
Component: Inductor = 7.20 nH
Final normalized y: 1.00+0.00j
Final impedance: 50.00+0.00j Ω

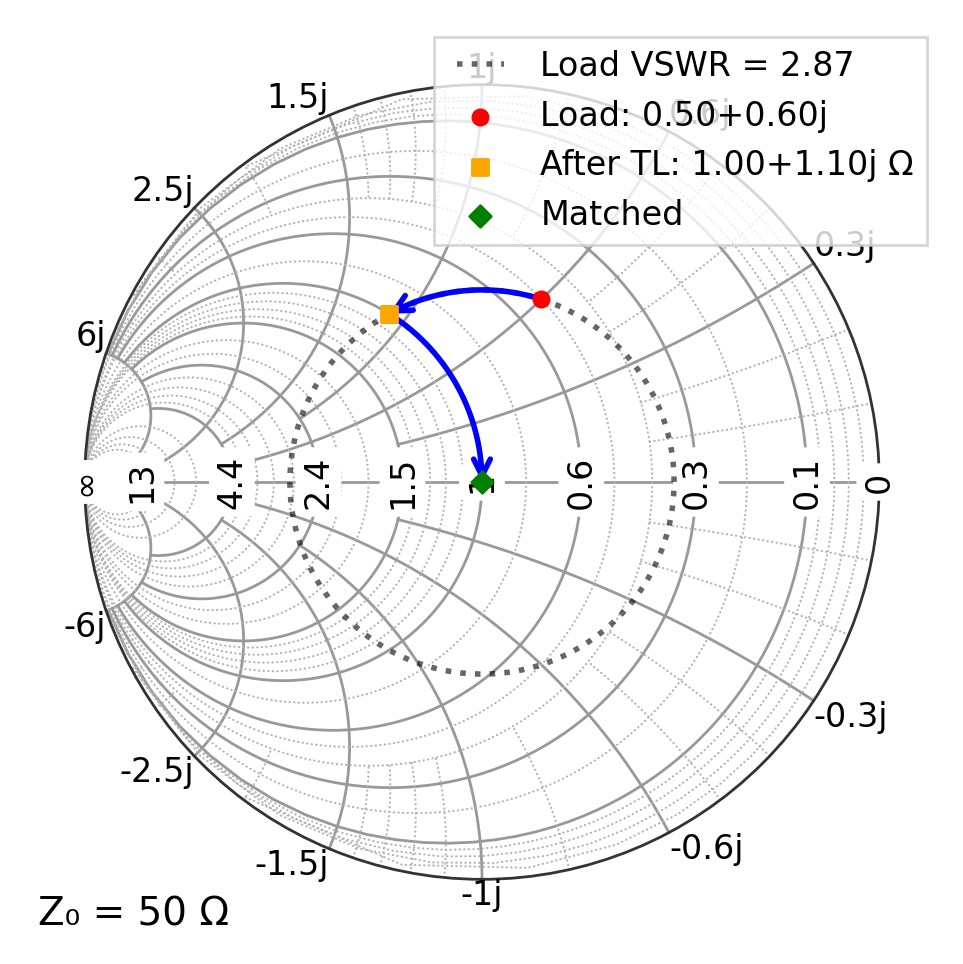

[8]:
plt.figure(figsize=(6, 6))
ax = plt.subplot(111, projection="smith", grid="admittance", domain=NORM_Y_DOMAIN)
vswr = utils.calc_vswr(Z0, Z_load)
ax.plot_vswr(vswr, "k:", alpha=0.6, label=f"Load VSWR = {vswr:.2f}")
ax.plot_rotation_path(y_load, y_after_tl, "b", linewidth=2, arrow="end")
ax.plot_constant_conductance(1, "b", range=(y_after_tl.imag, y_final.imag), lw=2, arrow="end")
ax.scatter(y_load, c="red", s=30, marker="o", label=f"Load: {y_load:.2f}")
ax.scatter(y_after_tl, c="orange", s=30, marker="s", label=f"After TL: {y_after_tl:.2f} Ω")
ax.scatter(y_final, c="green", s=30, marker="D", label=f"Matched", zorder=10)
ax.legend(loc="upper right")
# ax.set_title("Smith Chart View (Impedance)", fontsize=12, fontweight="bold")
plt.show()

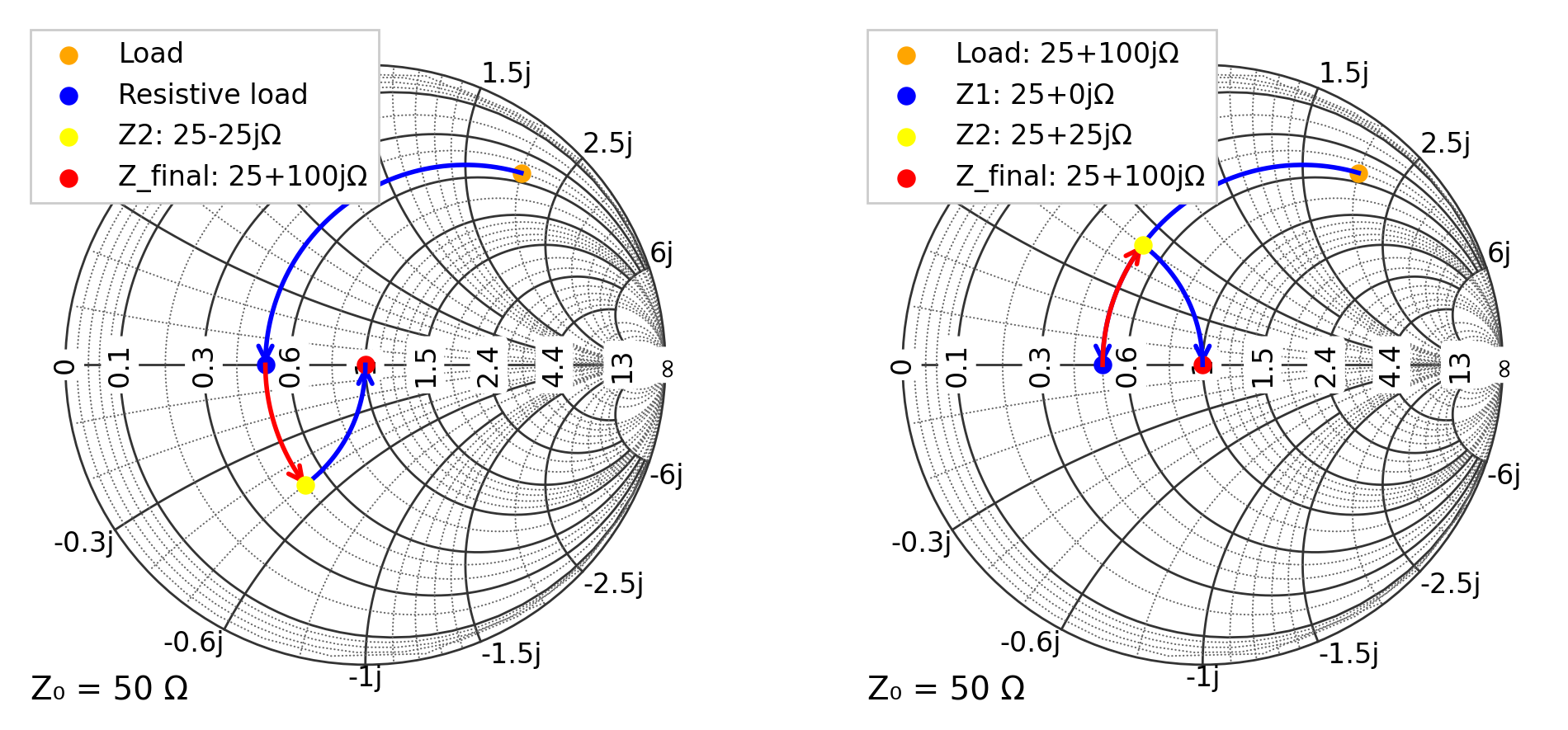

Example 4: L-Network Matching (Series-Shunt)
Two-element L-network using:
Series reactive element
Shunt reactive element
Application: Broadband matching without transmission lines (good for low frequencies).
+────50Ω─────+────────[X_series]─────+────[X_cancel]────+
| | |
| | |
[Generator] [X_shunt] [Load]
| | |
| | |
=== === ===
GND GND GND
↑ ↑
Input impedance At load
(want 50Ω)
we can combine the two reactances in series to get
+────50Ω─────+────[X_series + X_cancel]────+
| | |
| | |
[Generator] [X_shunt] [Load]
| | |
| | |
=== === ===
GND GND GND
[9]:
f = 1e9
Z0 = 50
Z_load = 25 + 100j
# Step 1: cancel load reactance (series)
X_cancel = -Z_load.imag
Z1 = Z_load + 1j * X_cancel # 25 + 0j
comp_type, comp_value, comp_unit = utils.reactance_to_component(X_cancel, f)
print(f"X_cancel needed:")
print(f" Reactance needed: {X_cancel:+.3f} Ω")
print(f" Component: {comp_type} = {comp_value:.2f} {comp_unit}")
print()
# Step 2: Q (valid now that Z1 is real)
R = Z1.real
Q = np.sqrt(Z0 / R - 1)
# Series-first L-match values (for R < Z0)
X_series_mag = Q * R # 25
X_shunt_mag = R * (1 + Q**2) / Q # 50 <-- key fix
comp_type, comp_value, comp_unit = utils.reactance_to_component(X_series, f)
print(f"X_series needed:")
print(f" Reactance needed: {X_series:+.3f} Ω")
print(f" Component: {comp_type} = {comp_value:.2f} {comp_unit}")
print()
for sgn in (+1, -1):
Xs_total = X_cancel + sgn * X_series_mag # -75 or -125
# choose shunt sign to cancel susceptance after series step
Z2 = Z_load + 1j * Xs_total
Y2 = 1 / Z2
B_needed = -Y2.imag # cancel imag(Y)
Xp = -1 / B_needed # since B = -1/X for jX
Y_final = Y2 + 1 / (1j * Xp)
Z_final = 1 / Y_final
print(f"Xs_total = {Xs_total:+.2f} Ω, Xp = {Xp:+.2f} Ω -> Z_final = {Z_final}")
X_cancel needed:
Reactance needed: -100.000 Ω
Component: Capacitor = 1.59 pF
X_series needed:
Reactance needed: -84.163 Ω
Component: Capacitor = 1.89 pF
Xs_total = -75.00 Ω, Xp = -50.00 Ω -> Z_final = (50+0j)
Xs_total = -125.00 Ω, Xp = +50.00 Ω -> Z_final = (50+0j)
[11]:
z_load = Z_load / Z0
z1 = Z1 / Z0
z2 = Z2 / Z0
y_load = 1 / z_load
y1 = 1 / z1
y2 = 1 / z2
vswr = utils.calc_vswr(Z0, Z_load)
plt.figure(figsize=(12, 6))
ax = plt.subplot(121, projection="smith")
ax.scatter(Z_load, c="orange", s=50, marker="o", label=f"Load")
ax.scatter(Z1, c="blue", s=50, marker="o", label=f"Resistive load")
ax.scatter(Z2, c="yellow", s=50, marker="o", label=f"Z2: {Z2:.0f}Ω", zorder=10)
ax.scatter(Z_final, c="red", s=50, marker="o", label=f"Z_final: {Z_load:.0f}Ω")
ax.plot_constant_resistance(z_load.real, "b-", range=(z_load.imag, 0), arrow="end")
ax.plot_constant_resistance(z_load.real, "r-", range=(0, z2.imag), arrow="end")
ax.plot_constant_conductance(y2.real, "b-", range=(-y2.imag, 0), arrow="end")
ax.legend(loc="upper left", framealpha=1.0)
Z2 = np.conjugate(Z2)
z2 = Z2 / Z0
y2 = 1 / z2
ax = plt.subplot(122, projection="smith")
ax.scatter(Z_load, c="orange", s=50, marker="o", label=f"Load: {Z_load:.0f}Ω")
ax.scatter(Z1, c="blue", s=50, marker="o", label=f"Z1: {Z1:.0f}Ω")
ax.scatter(Z2, c="yellow", s=50, marker="o", label=f"Z2: {Z2:.0f}Ω", zorder=10)
ax.scatter(Z_final, c="red", s=50, marker="o", label=f"Z_final: {Z_load:.0f}Ω")
ax.plot_constant_resistance(z_load.real, "b-", range=(z_load.imag, 0), arrow="end")
ax.plot_constant_resistance(z_load.real, "r-", range=(0, z2.imag), arrow="end")
ax.plot_constant_conductance(y2.real, "b-", range=(-y2.imag, 0), arrow="end")
ax.legend(loc="upper left", framealpha=1.0)
plt.show()
Example 5: Double-Stub Matching
Two shunt stubs separated by λ/8 transmission line. The stub lengths can be adjusted. The feedline and both stubs have a characteristic impedance of 50 Ω.
+────50Ω─────+────────[λ/8 spacing line]─────+─────────+
| | 50Ω | |
| | | |
[Generator] [Stub 2] [Stub 1] [Load]
| | | |
| | | |
=== === === ===
GND GND GND GND
↑ ↑
Input impedance At load
(want 50Ω)
The stubs can only add reactance to the circuit so process will use admittances moving from the load to the generator
Load Stub 1 Spacing Stub 2 Input
y_load → [+jb₁] → [λ/8] → [+jb₂] → y_in=1+0j
0.4-0.2j +jb₁ rotate +jb₂ 1+0j
↓ ↓
y_needed y_target_on_g1
at_stub1
[12]:
Z0 = 50
Z_load = 80 + 60j
z_load = Z_load / Z0
y_load = 1 / z_load # Normalized admittance
stub_spacing = 0.125 # λ/8 spacing
print("=" * 60)
print("EXAMPLE 5: DOUBLE-STUB MATCHING")
print("=" * 60)
print(f"Frequency: {f/1e9:.1f} GHz")
print(f"Load impedance: {Z_load:.1f} Ω")
print(f"Load admittance: {y_load:.3f}")
print(f"Stub spacing: {stub_spacing}λ")
print()
# STEP 1: Rotate load by spacing
y_load_rotated = rotate_y_by_wavelength(y_load, stub_spacing, direction="toward_load")
print(f"Load rotated by {stub_spacing}λ: y = {y_load_rotated:.3f}")
# STEP 2: Try to find target on g=1 circle
try:
y_target_on_g1 = rotate_y_toward_conductance(y_load_rotated, 1.0, solution="closer")
print(f"Target on g=1 circle: y = {y_target_on_g1:.3f}")
except Exception as e:
print(f"ERROR: Cannot reach g=1 circle - {e}")
print("Load may be in FORBIDDEN REGION")
y_target_on_g1 = None
if y_target_on_g1 is None:
print("\nNo solution exists for this load with this stub spacing")
else:
# STEP 3: Work backwards
y_after_stub1_target = rotate_y_by_wavelength(y_target_on_g1, stub_spacing, direction="toward_generator")
print(f"Need after stub1: y = {y_after_stub1_target:.3f}")
# STEP 4: Check conductance match
g_error = abs(y_after_stub1_target.real - y_load.real)
if g_error > 0.05: # 5% tolerance
print(f"\nWARNING: Conductance mismatch (error = {g_error:.3f})")
print(f" Need g = {y_after_stub1_target.real:.3f}")
print(f" Have g = {y_load.real:.3f}")
print(f" Trying alternate solution...")
# Try the other solution
try:
y_target_on_g1 = rotate_y_toward_conductance(y_load_rotated, 1.0, solution="farther")
print(f"Alternate target on g=1: y = {y_target_on_g1:.3f}")
y_after_stub1_target = rotate_y_by_wavelength(y_target_on_g1, stub_spacing, direction="toward_generator")
print(f"Need after stub1: y = {y_after_stub1_target:.3f}")
g_error = abs(y_after_stub1_target.real - y_load.real)
if g_error > 0.05:
print(f"\nERROR: No valid solution for this stub spacing")
print(f"Load is in FORBIDDEN REGION for {stub_spacing}λ spacing")
y_target_on_g1 = None
except Exception as e:
print(f"ERROR: {e}")
y_target_on_g1 = None
if y_target_on_g1 is not None:
# Calculate stub 1
b_stub1 = y_after_stub1_target.imag - y_load.imag
print(f"\nFirst stub (at load):")
print(f" Adds susceptance: b = {b_stub1:+.3f}")
# Convert to stub length
if abs(b_stub1) < 1e-10:
stub1_length = 0.25
else:
beta_l = np.arctan(-1 / b_stub1)
if beta_l < 0:
beta_l += np.pi
stub1_length = beta_l / (2 * np.pi)
print(f" Stub length: {stub1_length:.4f}λ = {stub1_length * 360:.1f}°")
# Apply stub 1
y_after_stub1 = y_load + 1j * b_stub1
print(f"\nAfter stub 1: y = {y_after_stub1:.3f}")
# Rotate by spacing
y_after_spacing = rotate_y_by_wavelength(y_after_stub1, stub_spacing, direction="toward_load")
print(f"\nAfter spacing line ({stub_spacing}λ): y = {y_after_spacing:.3f}")
print(f" Conductance g = {y_after_spacing.real:.3f} (should be ≈ 1.0)")
# Stub 2 cancels susceptance
b_stub2 = -y_after_spacing.imag
print(f"\nSecond stub:")
print(f" Adds susceptance: b = {b_stub2:+.3f}")
if abs(b_stub2) < 1e-10:
stub2_length = 0.25
else:
beta_l = np.arctan(-1 / b_stub2)
if beta_l < 0:
beta_l += np.pi
stub2_length = beta_l / (2 * np.pi)
print(f" Stub length: {stub2_length:.4f}λ = {stub2_length * 360:.1f}°")
# Final result
y_final = y_after_spacing + 1j * b_stub2
z_final = 1 / y_final
Z_final = z_final * Z0
print(f"\nFinal admittance: {y_final:.3f}")
print(f"Final impedance: {Z_final:.2f} Ω")
vswr_final = utils.calc_vswr(Z0, Z_final)
print(f"Final VSWR: {vswr_final:.4f}:1")
print("\n" + "=" * 60)
print("DOUBLE STUB DESIGN SUMMARY")
print("=" * 60)
print(f"Stub 1 (at load): {stub1_length:.4f}λ = {stub1_length * 360:.1f}°")
print(f"Spacing line: {stub_spacing}λ")
print(f"Stub 2 (at input): {stub2_length:.4f}λ = {stub2_length * 360:.1f}°")
print("=" * 60)
============================================================
EXAMPLE 5: DOUBLE-STUB MATCHING
============================================================
Frequency: 1.0 GHz
Load impedance: 80.0+60.0j Ω
Load admittance: 0.400-0.300j
Stub spacing: 0.125λ
Load rotated by 0.125λ: y = 1.231-1.154j
Target on g=1 circle: y = 1.000-1.061j
Need after stub1: y = 0.381-0.214j
First stub (at load):
Adds susceptance: b = +0.086
Stub length: 0.2636λ = 94.9°
After stub 1: y = 0.400-0.214j
After spacing line (0.125λ): y = 1.029-1.022j
Conductance g = 1.029 (should be ≈ 1.0)
Second stub:
Adds susceptance: b = +1.022
Stub length: 0.3767λ = 135.6°
Final admittance: 1.029+0.000j
Final impedance: 48.57+0.00j Ω
Final VSWR: 1.0295:1
============================================================
DOUBLE STUB DESIGN SUMMARY
============================================================
Stub 1 (at load): 0.2636λ = 94.9°
Spacing line: 0.125λ
Stub 2 (at input): 0.3767λ = 135.6°
============================================================
[13]:
Z0 = 50
Z_load = 80 + 60j
z_load = Z_load / Z0
y_load = 1 / z_load # Normalized admittance
stub_spacing = 0.125 # λ/8 spacing
plt.figure(figsize=(12, 6))
ax = plt.subplot(121, projection="smith", grid="admittance", domain=NORM_Y_DOMAIN)
ax.scatter(y_load, c="blue", s=50, marker="o", label="load")
ax.scatter(y_load_rotated, c="orange", s=50, marker="o", label="load rotated λ/8")
ax.plot_rotation_path(y_load, y_load_rotated, "blue", linewidth=1, arrow="end", label=f"{stub_spacing}λ Line")
ax.scatter(y_target_on_g1, c="red", s=50, marker="o", label="target on g=1")
ax.annotate(
"target on g=1",
(y_target_on_g1.real, y_target_on_g1.imag),
xytext=(0.3, -1.6),
arrowprops=dict(arrowstyle="-|>"),
bbox=text_box,
zorder=10,
)
ax.annotate(
"load rotated λ/8",
(y_load_rotated.real, y_load_rotated.imag),
xytext=(1, 0.6),
arrowprops=dict(arrowstyle="-|>"),
bbox=text_box,
zorder=10,
)

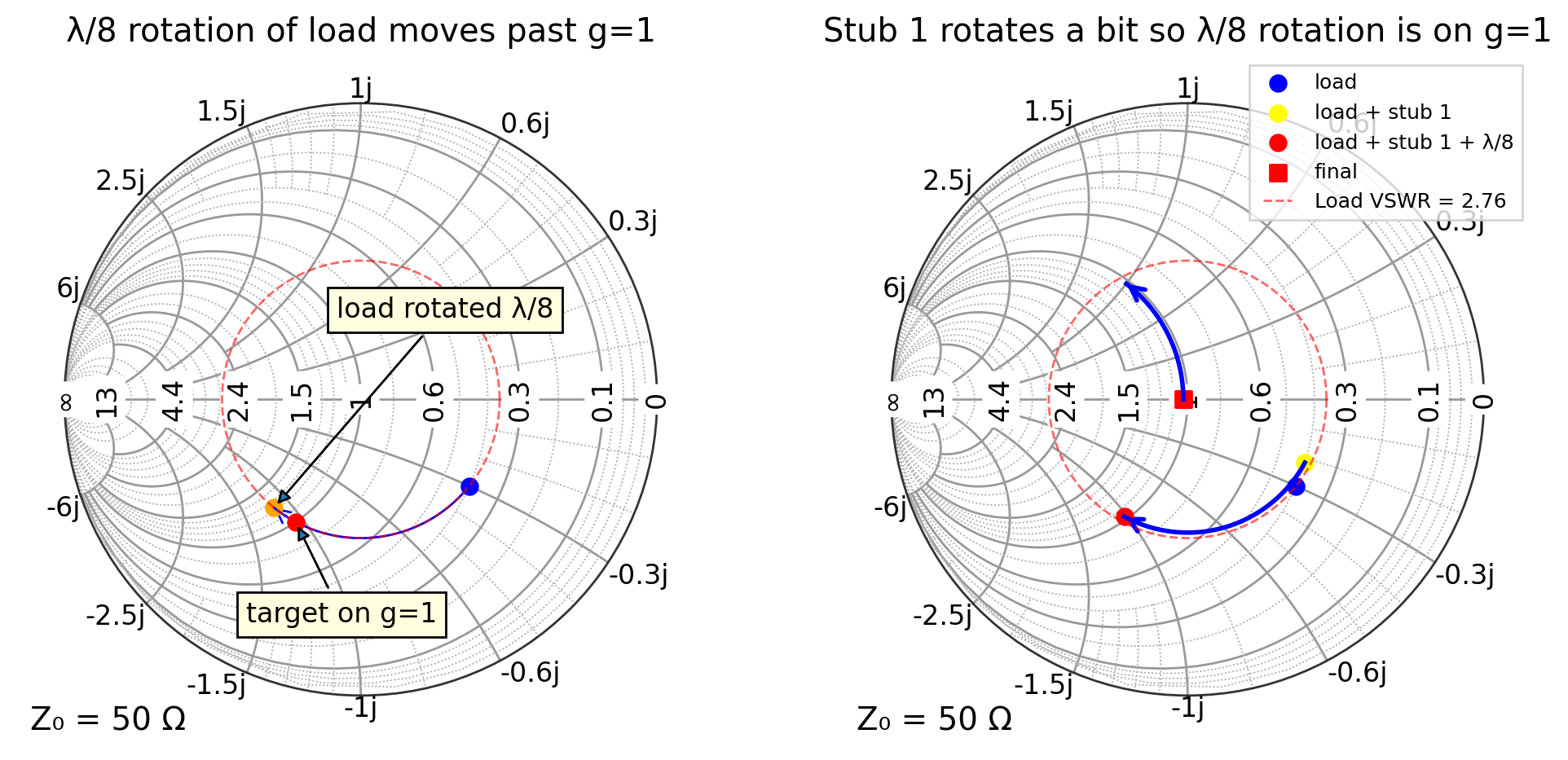

ax.set_title("λ/8 rotation of load moves past g=1")
vswr = utils.calc_vswr(Z0, Z_load)
ax.plot_vswr(vswr, "r--", alpha=0.6, lw=1, label=f"Load VSWR = {vswr:.2f}")
ax = plt.subplot(122, projection="smith", grid="admittance", domain=NORM_Y_DOMAIN)
ax.scatter(y_load, c="blue", s=50, marker="o", label="load")
ax.scatter(y_after_stub1, c="yellow", s=50, marker="o", label="load + stub 1")
ax.scatter(y_after_spacing, c="red", s=50, marker="o", label="load + stub 1 + λ/8")
ax.scatter(y_final, c="red", s=50, marker="s", label="final")
ax.plot_rotation_path(y_after_stub1, y_after_spacing, "blue", lw=2, arrow="end")
ax.plot_constant_conductance(y_after_spacing, "blue", lw=2, range=(0, 1), arrow="end")
ax.set_title("Stub 1 rotates a bit so λ/8 rotation is on g=1")
vswr = utils.calc_vswr(Z0, Z_load)
ax.plot_vswr(vswr, "r--", alpha=0.6, lw=1, label=f"Load VSWR = {vswr:.2f}")
ax.legend(loc="upper right", fontsize=9)
plt.show()
[ ]:
